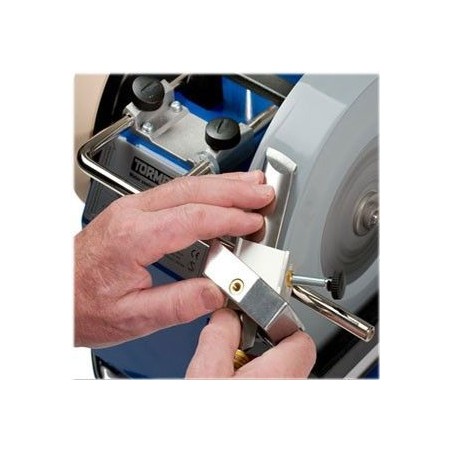

SVS-50 Multi Jig

Model 144014

Condition New

For an exact replication of the shape on turning skew chisels with a straight or curved edge. Thanks to a unique design the jig also copes with oval section skews.

More details

By buying this product you can collect up to 5 loyalty points. Your cart will total 5 points that can be converted into a voucher of 1,00 €.

Send to a friend
Send to a friend

SVS-50 Multi Jig
For an exact replication of the shape on turning skew chisels with a straight or curved edge. Thanks to a unique design the jig also copes with oval section skews.
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

More info

Also for parting and beading toolsand roughing gouges. Straight carving gouges up to 50 mm (2") wide. Max width of skews 32 mm (1¼").

This patented jig consists of a housing and two interchangeable seats – one closed, and one open. The seats can swivel and be locked with the screw at any skew angle between 0° and 45°. Skew chisels have symmetrical bevels on both sides. With this jig you mount the tool only once for grinding both the bevels. By turning the jig upside down you can grind both of the bevels symmetrically.
